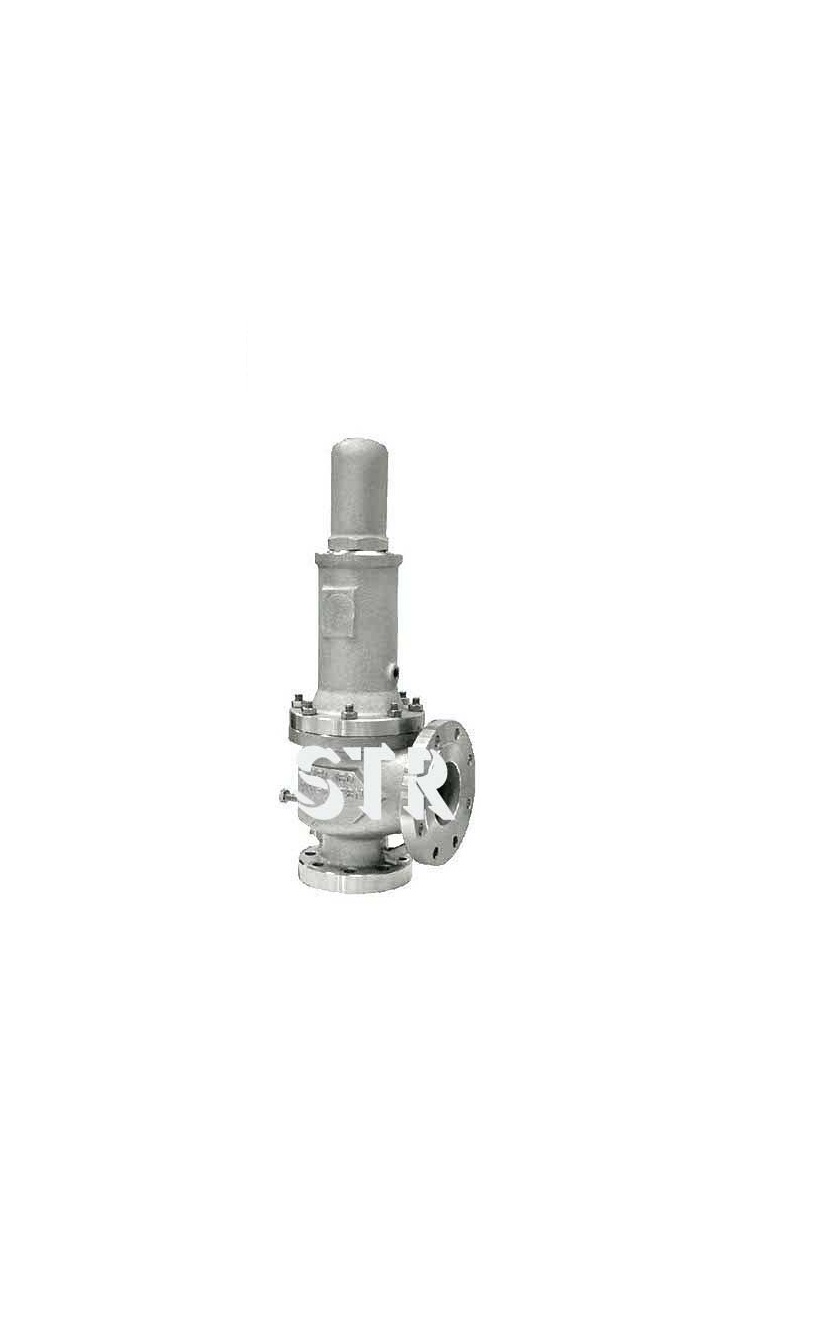

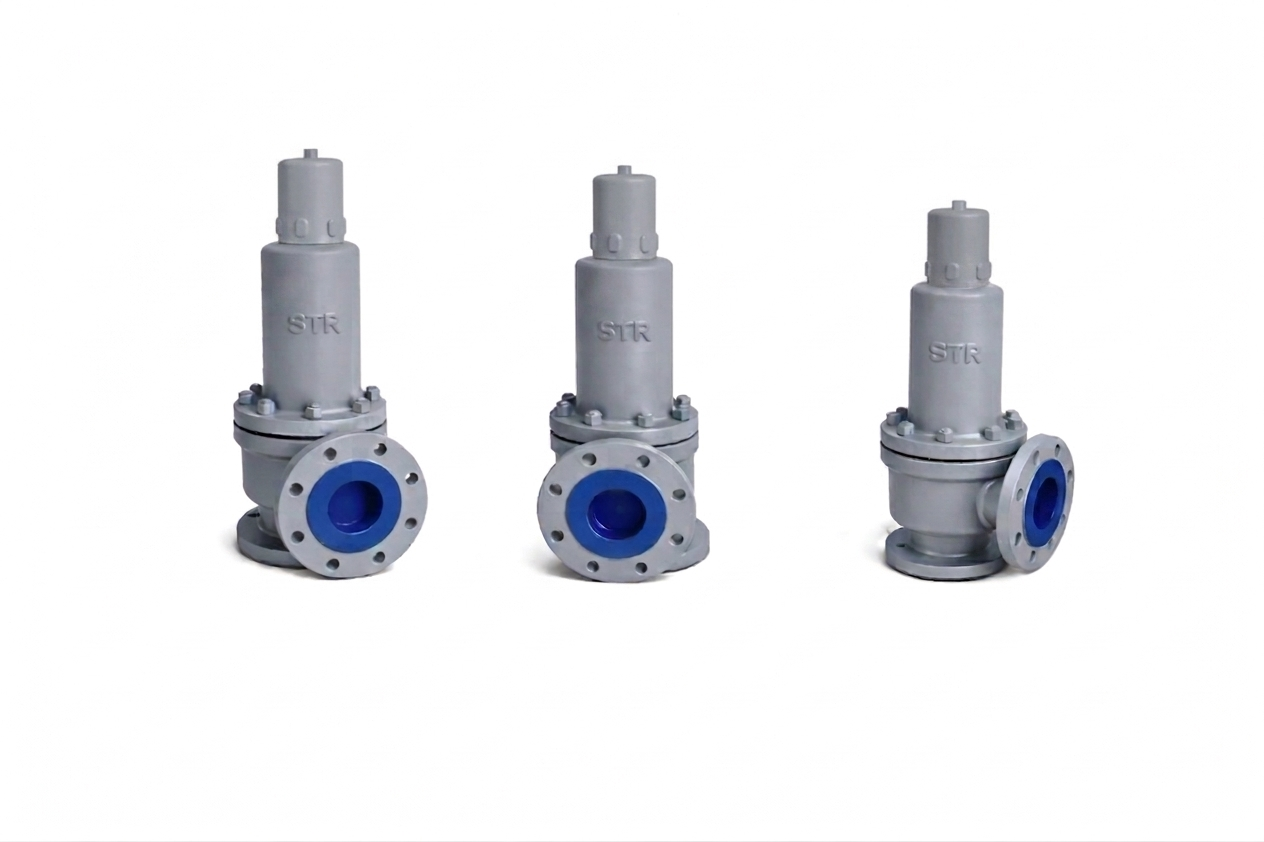

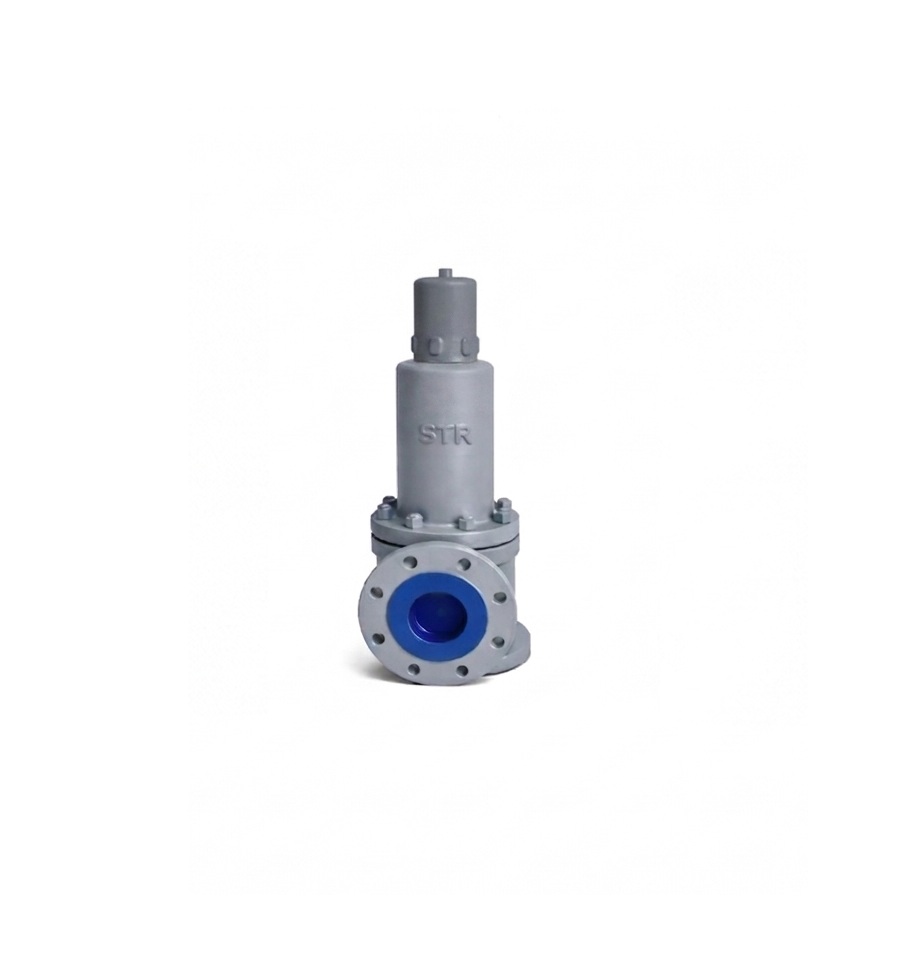

SAFETY VALVE

DESCRIPTION AND FEATURES

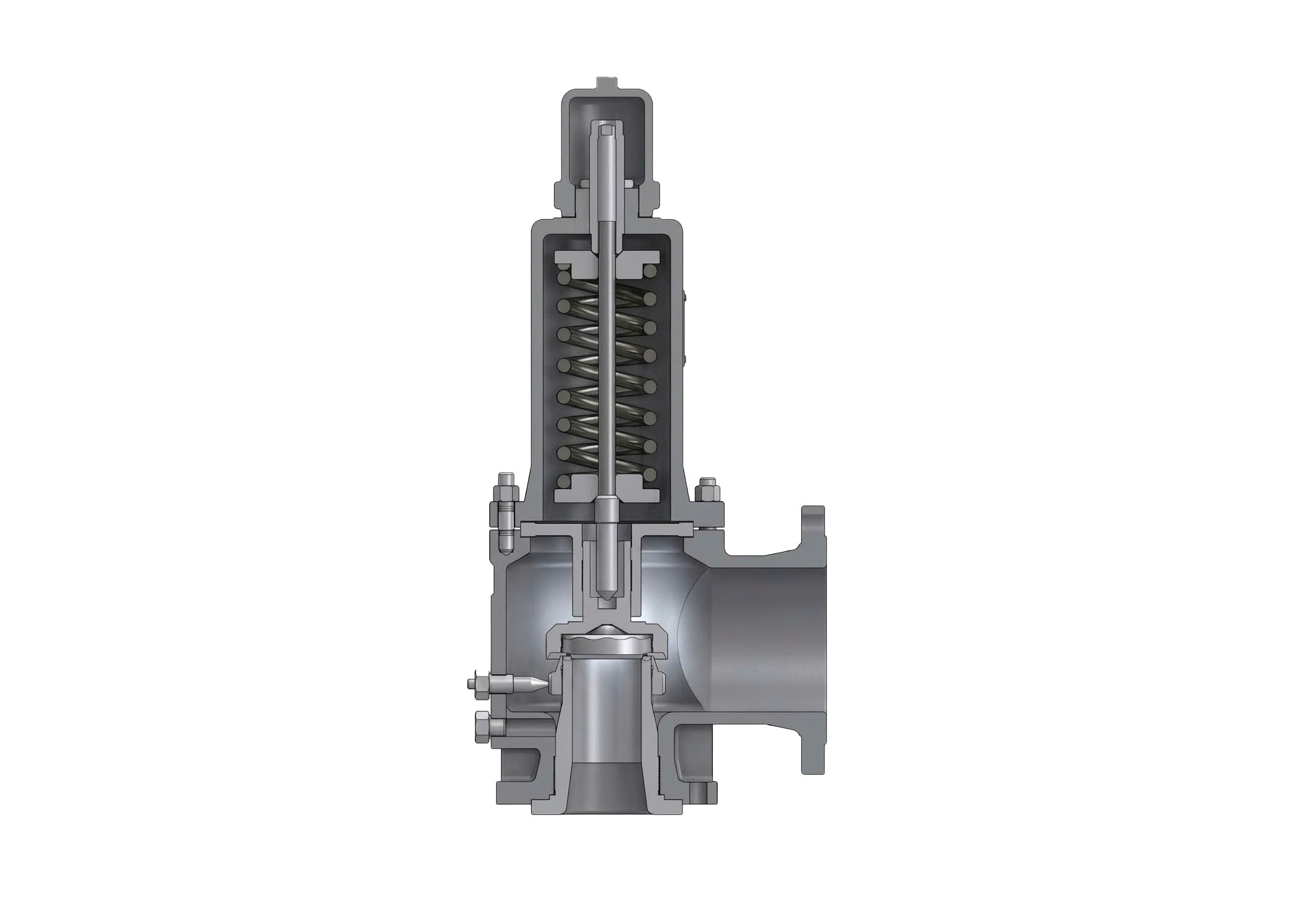

Safety Valve refers to a kind of safety valve with relatively small opening height and discharge capacity of valve disc. The sealing surface of the valve disc has two types: flat surface and conical surface. Their discharge area is calculated according to the area of the cylindrical surface or conical surface formed between the valve disc and the valve seat. The utility model has the advantages of simple structure and convenient manufacture, maintenance, test and adjustment. It is suitable for occasions with small discharge capacity, large back pressure and stable system pressure

Standard, construction and application

Design and Manufacture: GB/T 12243-1989, ASME PTC 25.3, API RP 520, 521, API 526, API 527, EN ISO 4126

Face to face(end to end): GB/T14087-1993, JB/T6441-1992, JB/T2203-1999, JB/T9624-1999, JB/T53170-1999
Flanged connection: ASME B16.5, DIN 2543~2545, EN 12627
Test and inspection: A ISO 5208, API 598, DIN 3230, MSS SP-117
Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex or Other Specials
Ends Connections: Flanged(FF, RF, RTJ) to international standards
Sizes Range : 1/2”~12” (DN15~DN300)
Pressure Class: ANSI CL150, CL300, PN10, PN16

The safety valve can be used widely in range of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.
