FORGED STEEL GLOBE VALVE

DESCRIPTION AND FEATURES

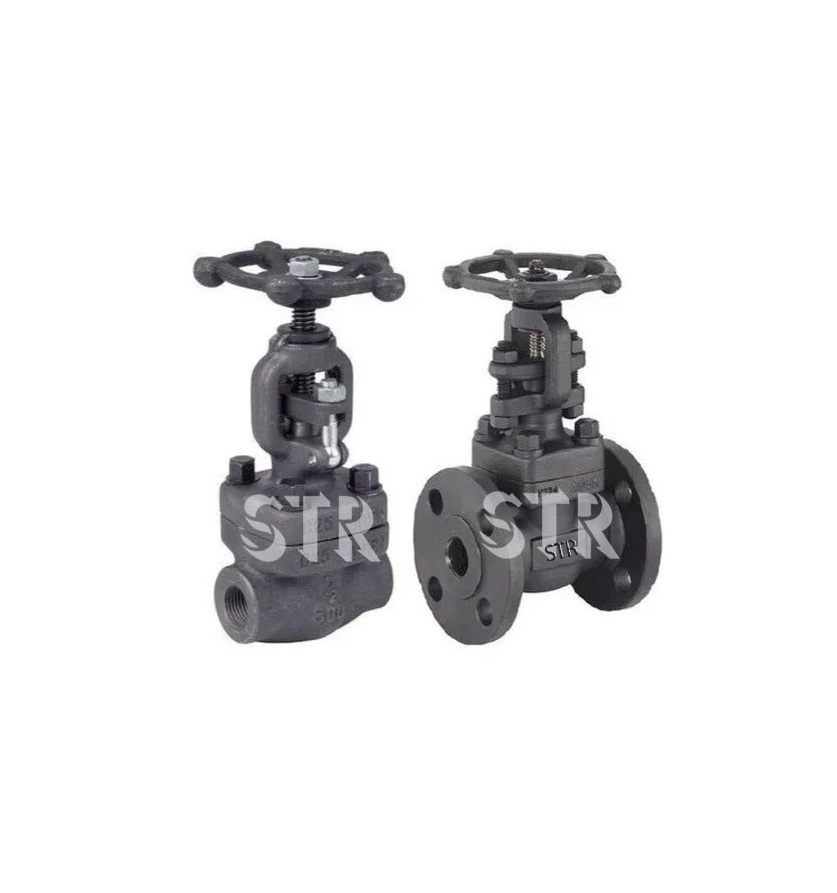

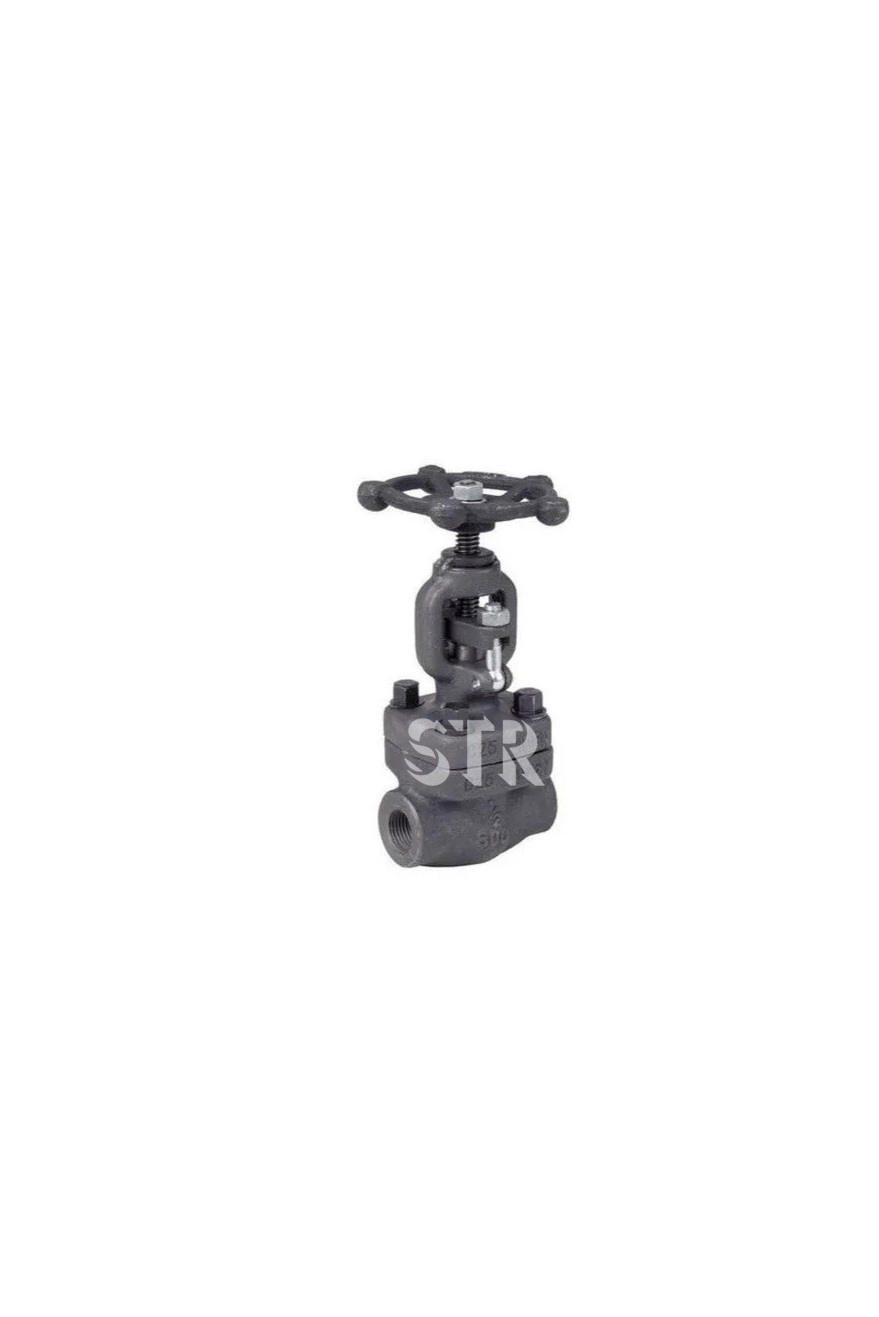

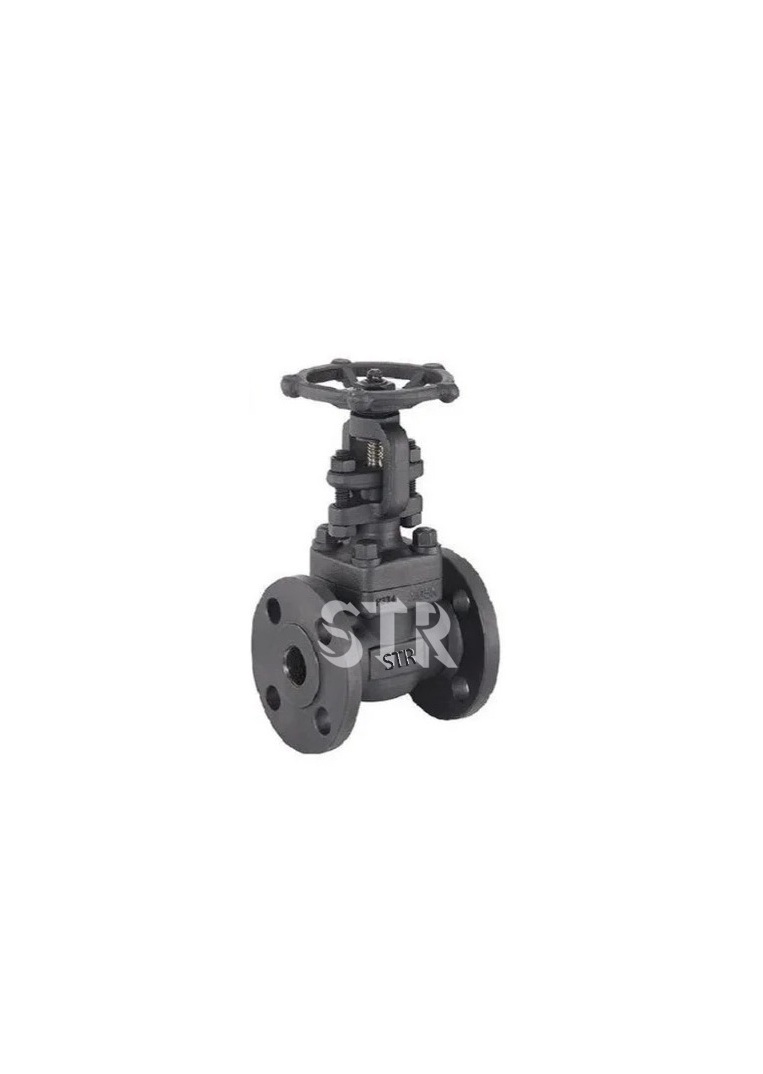

STR forged steel gbole valces with screwed and flanged ends are Bolted Bonnet, outside screw and yoke type, rising spindle & non-rising hand wheel construction, in size 1/2" (DN15) to 2" (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 1500 class in Regular (Reduced) Port. Our Forge Globe Valve is available in Bolted Bonnet Design, Pressure Seal Bonnet Design, Welded Bonnet Design and Cryogenic Service

For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Steel Globe Valve available in Threaded End (BSP/ NPT Female), Socket Weld End, Butt Weld End, and Weld Neck End.

Standard, construction and application

Design and Manufacture: BS 5352/API 602/ASME B 16.34

Inspection & Testing Standard: BS EN ISO 12266-1(BS 6755-l)/API 598/ISO 5208

Flange To Flange Distance:

As Per ANSI B 16.10 / BS 5352 / API 602

Screwed-Threaded End to ANSI B 1.20.1

Socket Weld End to ANSI B 16.11

Flanged Ends as per ANSI B 16.5

Manufacturing Size Range: 1/2" (DN15)to 2"(DN 50)

Pressure Rating of Valve: 800#/1500#/ 2500# for Screwed Ends and 150#/300#/600#for Flanged Ends

Materials for forged valves:

ASTM A 105-Forged Carbon Steel

304/ 304L-ASTM A 182 F 304/ F 304L-Forged Stainless Steel

316/316L-ASTMA 182 F 316/F 316L-Forged Stainless Steel

ASTM A 182 F 11/F 22 -Alloy Steel

Valve Operation: Manual Hand Wheel Operated, Valve Seat Leakage: Leakage Class IV

The forged steel globe valve used in fields: Generally fine controlling of flow, power Plants & Process Industries, petrochemical plants & refineries, fertilizers plants, process & general industries.
