BALL VALVE WITH PNEUMATIC ACTUATOR

DESCRIPTION AND FEATURES

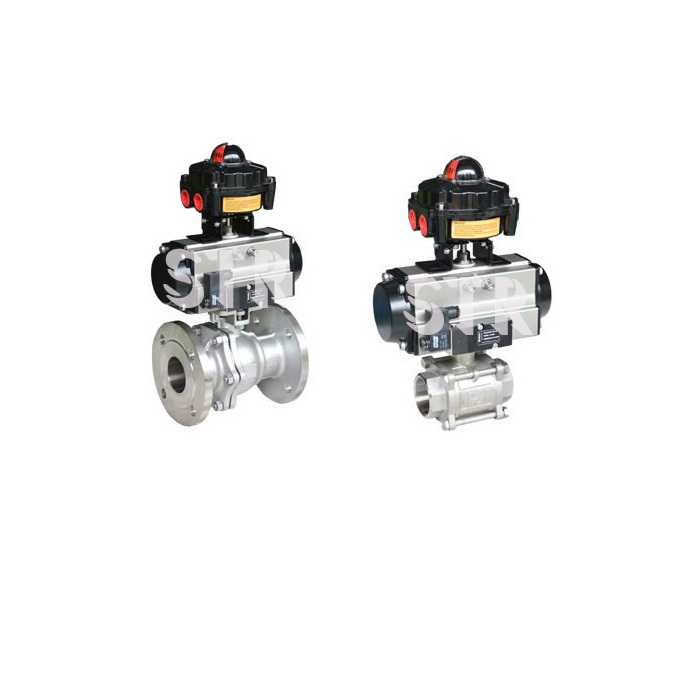

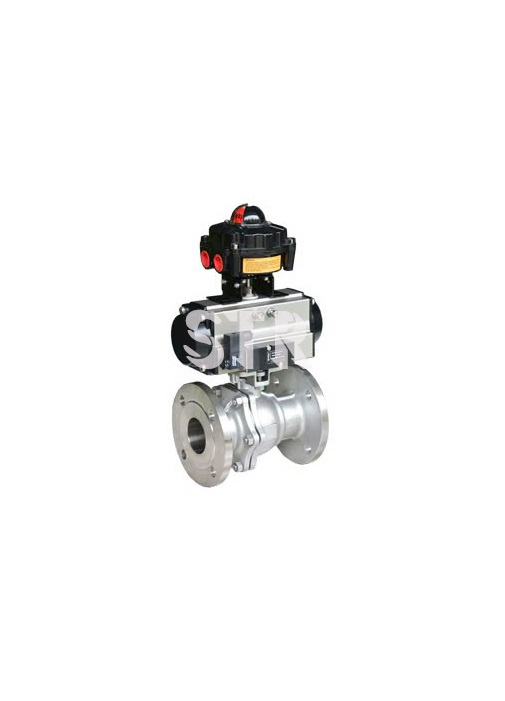

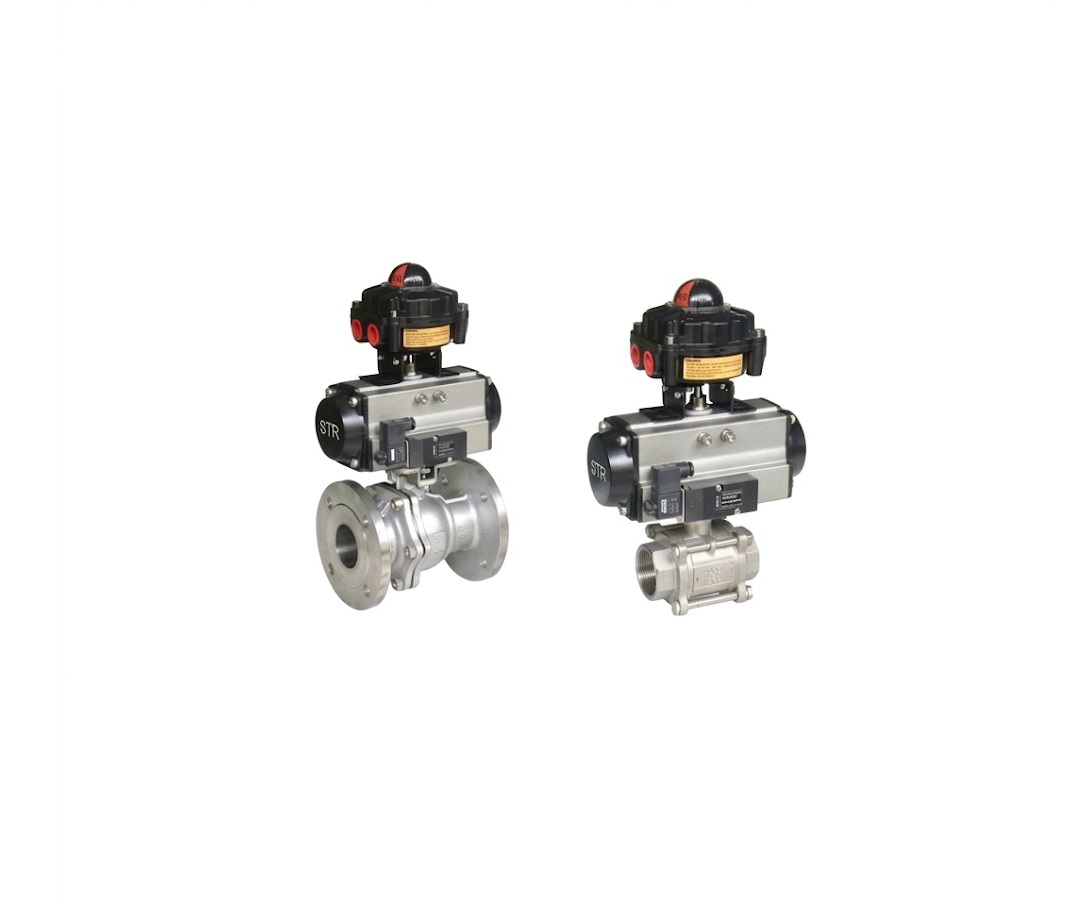

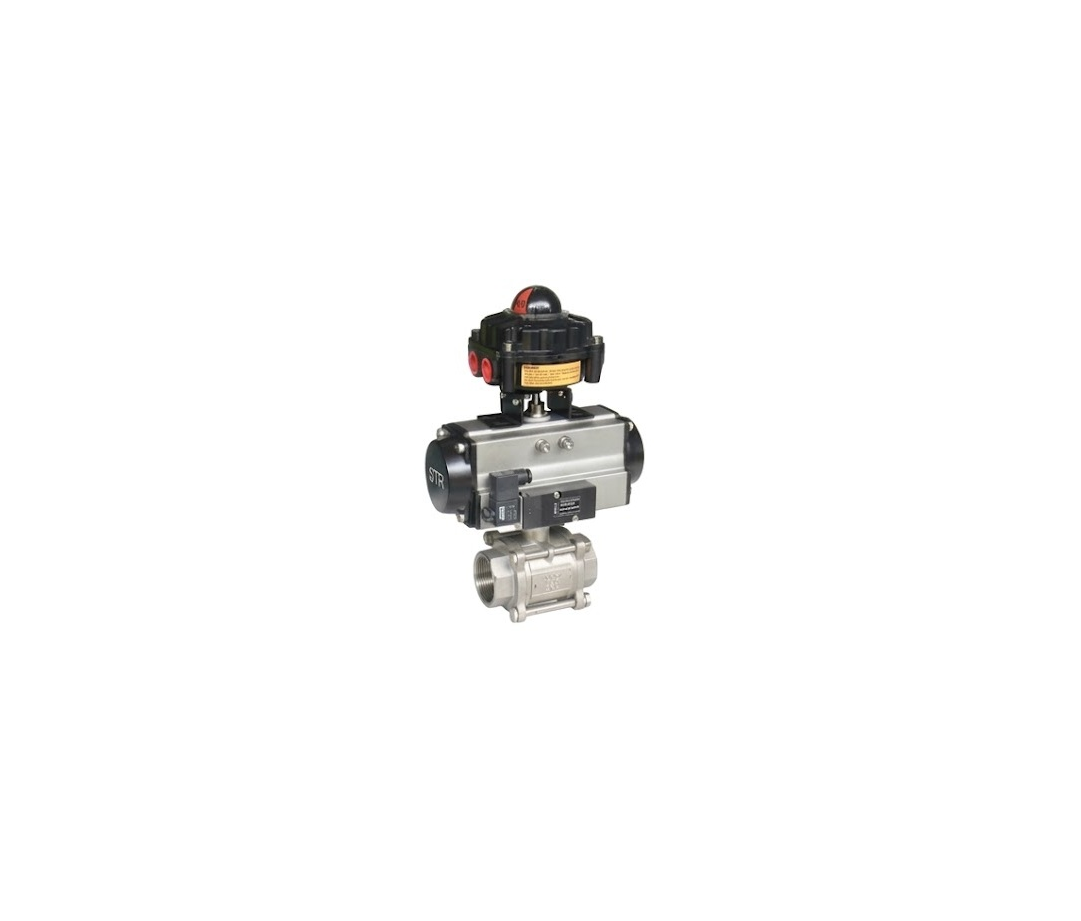

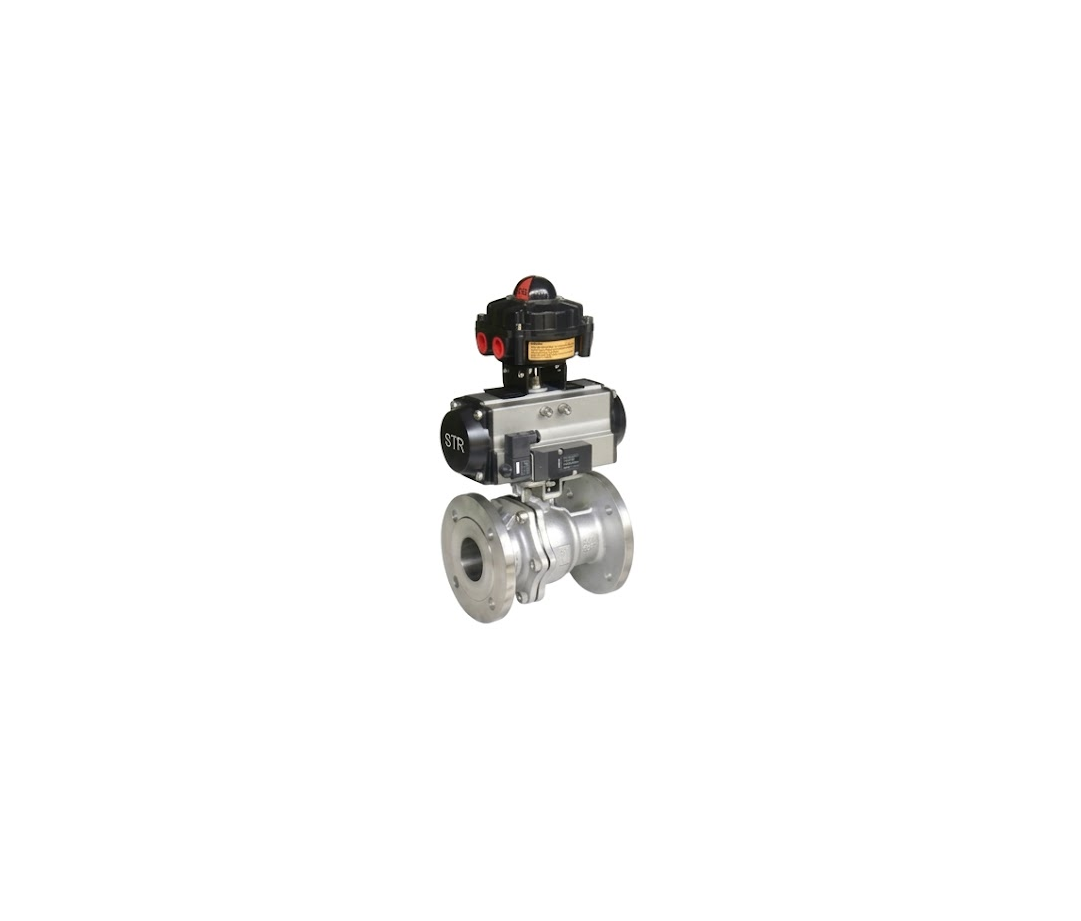

STR - 2 or 3 Way Ball Valve with a pneumatic actuator ensures superior performance for industrial operations. it is available in T port and L port configurations, this ball valve 2 or 3 way design offers flexible flow options for diverting, mixing, or isolating processes. Whether you are in need of 2 or 3 ball valve, it delivers reliable automation and precision.

Standard, construction and application

Body: WCB,CF8,CF8M,CF3M
Ball: SS304,SS316,SS316L
Body stlye: T port and L port
Stem: Stainless Steel
Seats: PTFE
Accessories for valve: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel
End connection: BSP, BSPT, NPT, Flange, Clamp, SW
Pneumatic actuator: Double acting, single acting
Size in range: 1/2” ~ 8”(DN15 ~ DN200)

Application: Generally fine controlling of flow, power Plants & Process Industries, petrochemical plants & refineries, fertilizers plants, process & general industries.
