BALL VALVE WITH ELECTRIC ACTUATOR

DESCRIPTION AND FEATURES

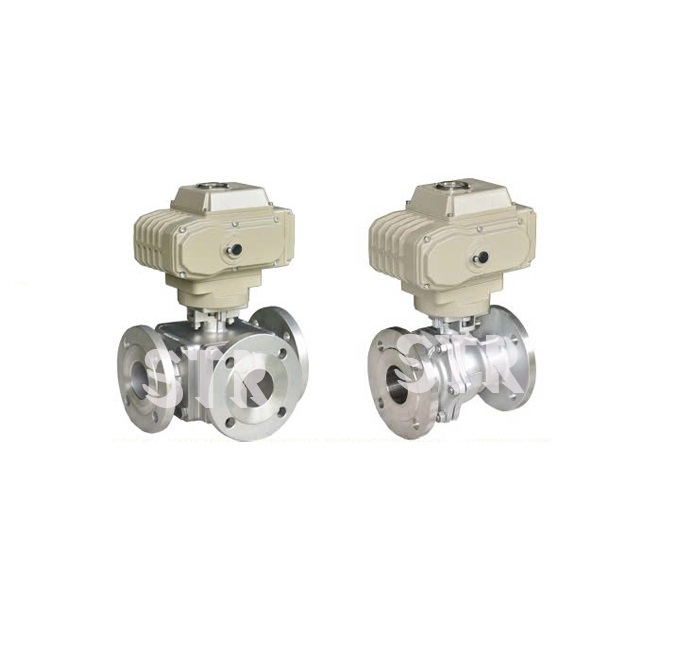

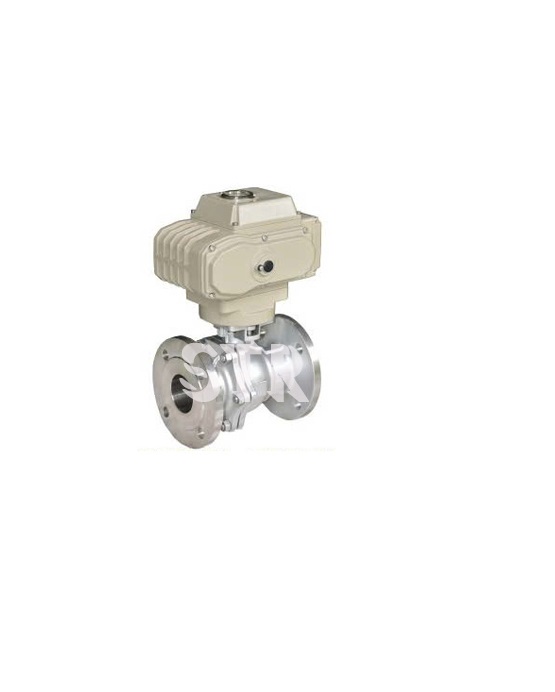

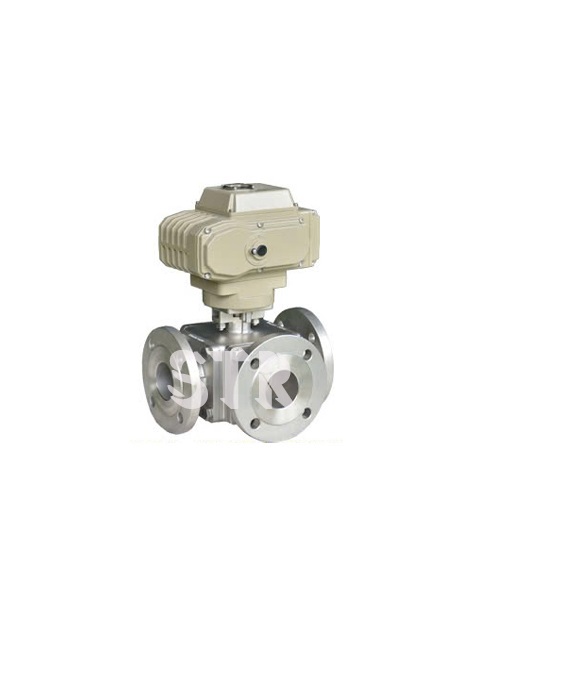

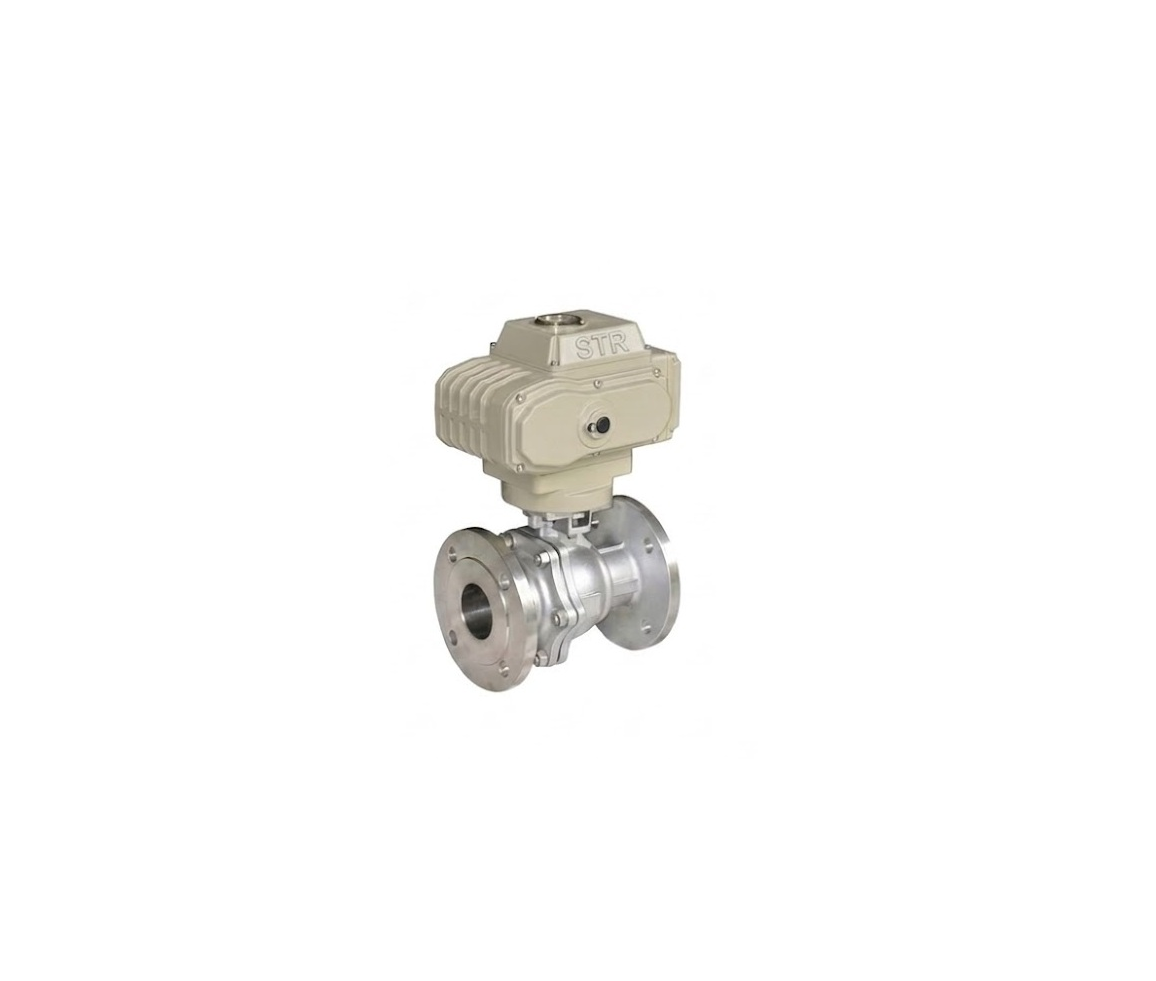

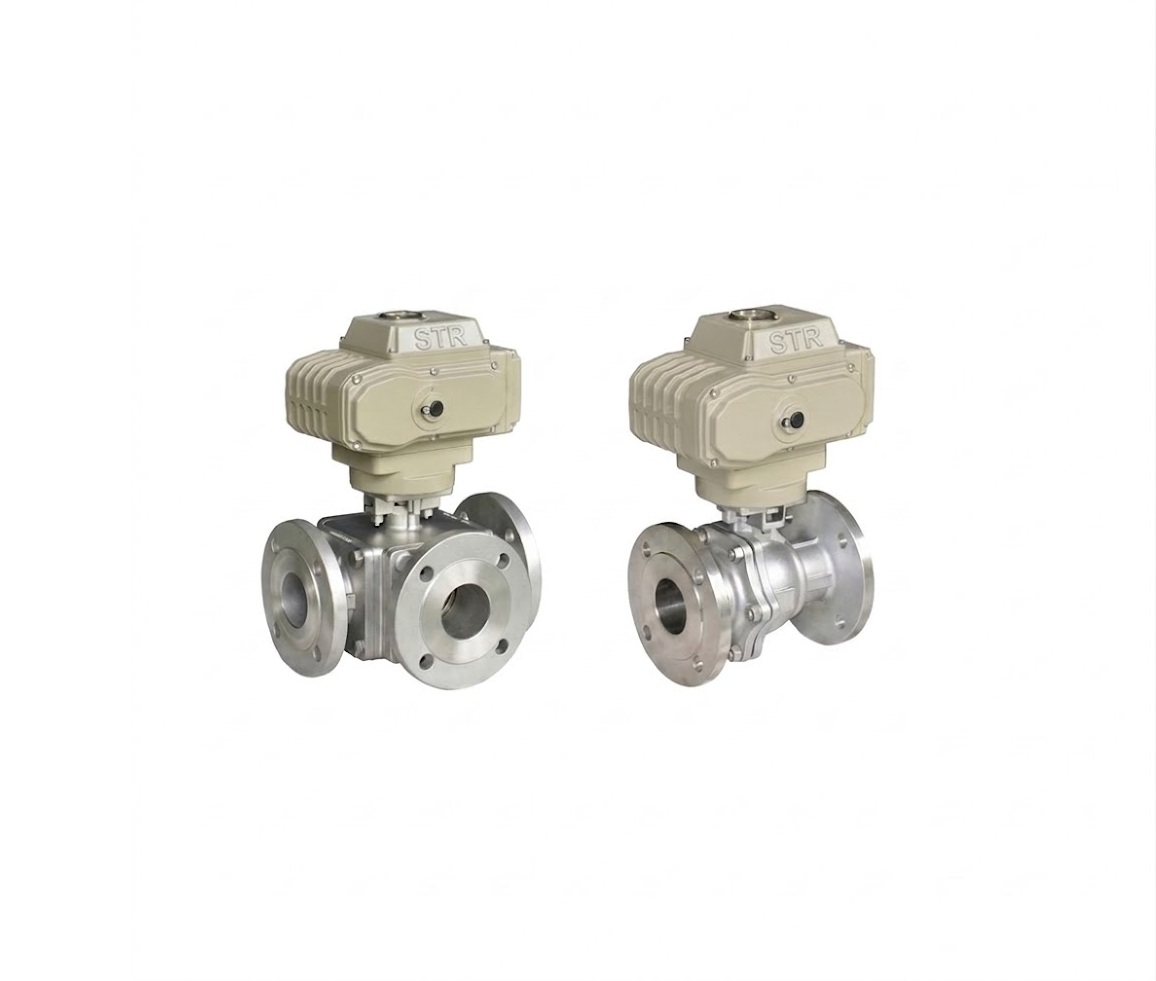

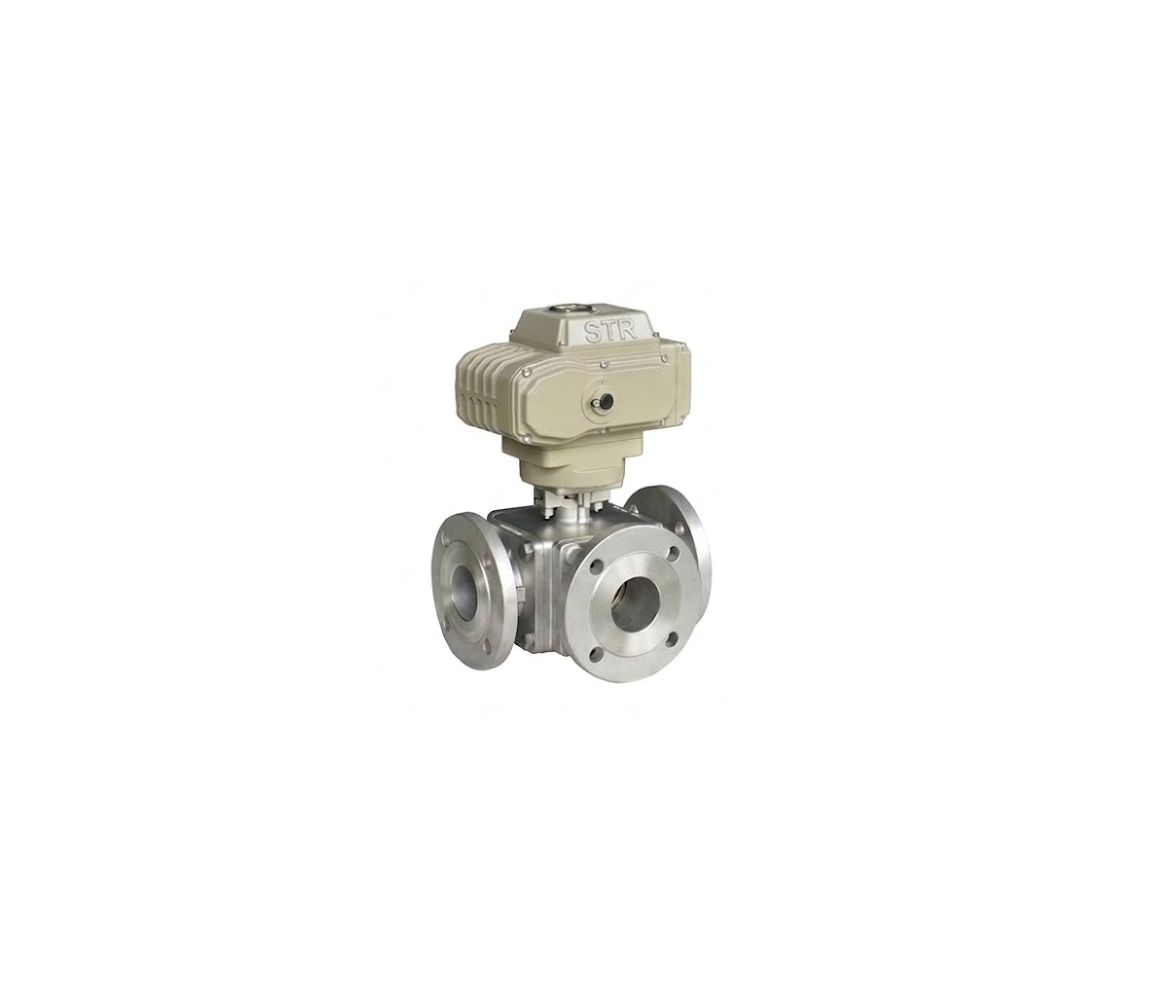

STR - 2 or 3 way ball valve with an electric actuator offers reliable flow control in industrial systems. The type L port and T port configurations, it adapts easily to diverse pipeline setups. Compatible with AC220V, AC380V, and DC24V power options, this ON-OFF type valve supports 4-20mA control for superior automation

Standard, construction and application

Body: WCB,CF8,CF8M,CF3M
Ball: SS304,SS316,SS316L
Body stlye: T port and L port
Stem: Stainless Steel
Seats: PTFE
Electric power: 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10%
Flange accommodation: BSP, BSPT, NPT, Flange, Clamp, SW
Electric actuator: ON-OFF type、Regulation type
Size: 1/2” ~ 8”(DN15 ~ DN200)

Application: Gasoline, oil, chemical, ...
